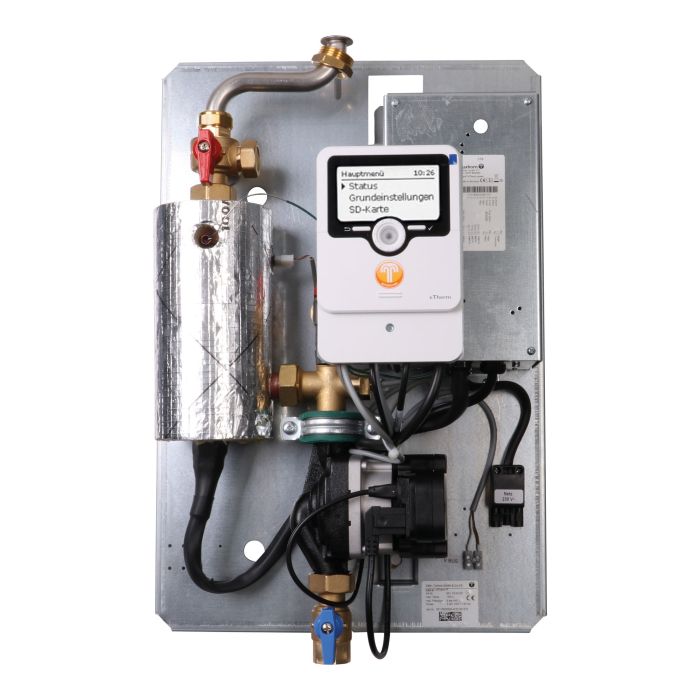

🆕 Electrothermal station for converting photovoltaic power into heat and storing this heat in buffer tanks. Stepless power control allows for optimal utilization of excess electricity. The speed-controlled charging pump heats the storage tank to an immediately usable temperature level.
Electrothermic station for converting photovoltaic power into heat and storing this heat in buffer tanks.
Stepless power control allows for optimal utilization of excess electricity. Features:
- Compact hydraulic unit with integrated power measurement, power control, and storage charging management
- System-independent of PV inverters, energy managers, and electricity meters
- Optimal adaptation through continuously modulating power up to 3000 W
- Suitable for use with buffer storage tanks and heating coils of domestic hot water storage tanks
- Ideal for retrofitting existing storage tanks
- Charging temperature control for immediately available heat
- Temperature setting range: 30 °C – 80 °C (target temperature 30 °C – 70 °C) – Usable storage capacity: 100%
- Flow rate: min. 2 l/h to max. 300 l/h
- CE compliant with regard to EMC and electrical safety
- No grid feedback due to rapid power modulation thanks to pulse control (16 kHz chopper technology)
Arne Nielsen A/S is a Tuxhorn reseller in the Nordics.
