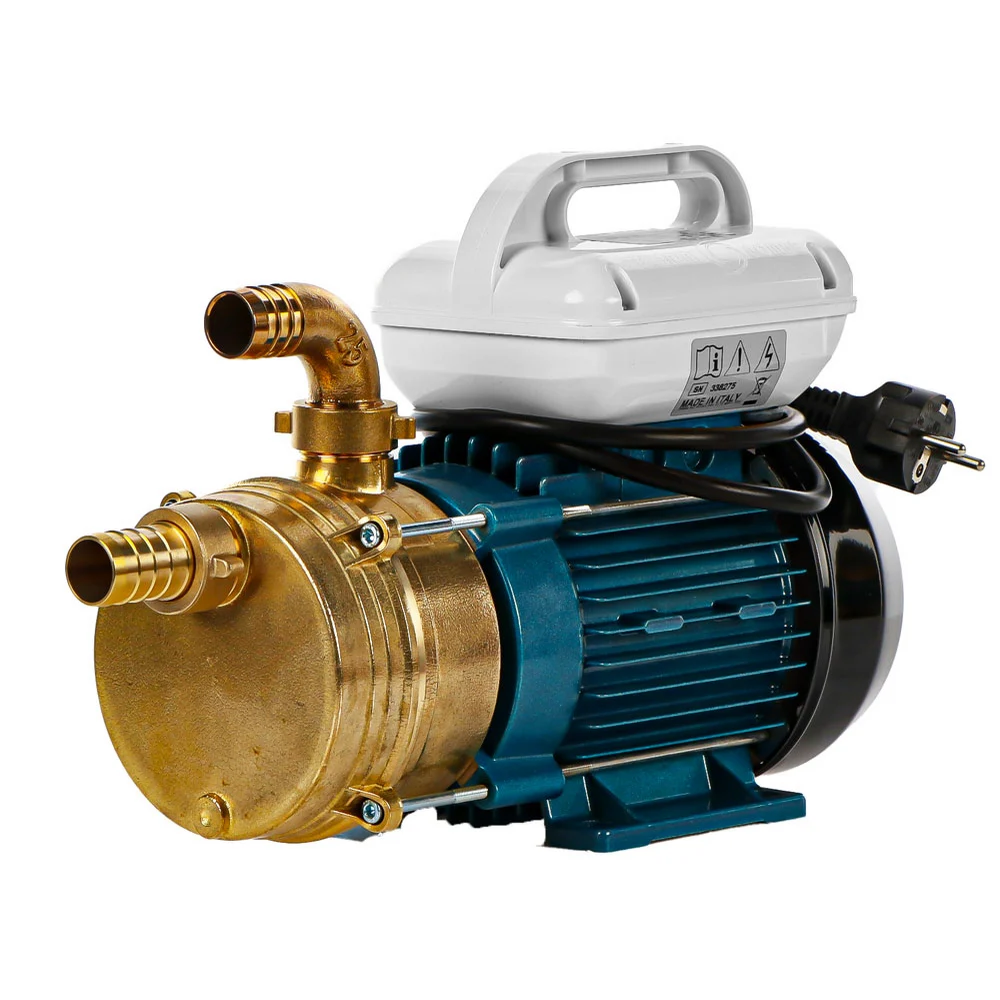

Today we had a Tellarini ENM 25 on the bench. It is a self-priming electric pump from Tellarini Pompe in Lugo, northern Italy, a family company that has built this type of pump for around 50 years.
What is a side-channel pump?
The ENM 25 is a side-channel pump, also known as a liquid-ring pump. Once the pump body has been filled, it draws the liquid up by itself. That is a real advantage when the pump sits above the tank, barrel or bilge.
Tellarini highlights three properties in particular:
- It primes quickly, even with air in the suction hose
- The flow is reversible, so the same pump can fill and empty
- It is not damaged if the liquid runs out during pumping
Technical data
| Model | ENM 25 (art. 501) |
| Voltage | 230 V, 50 Hz, single-phase |
| Power | 0.44 kW |
| Flow | 43 l/min |
| Max. head | 12 m |
| Connection | 1″, 25 mm hose tail |
| Pump body | Bronze |
| Made in | Italy |
Figures are from the pump’s rating label. Tellarini’s datasheet states a maximum of 50 l/min and 13 m.
Where is it used?
The ENM series is built for heavy, continuous duty. It has an oversized single-phase asynchronous motor and a long-life rotary switch. Tellarini lists these uses:
- Agriculture: liquid fertiliser, crop protection, irrigation and pumps on farm machinery
- Professional use: heavy, continuous tasks and fixed installations
- Industry: machines and production lines
For marine work such as bilge pumping, deck washing and seawater, Tellarini also makes pumps in AISI 316 stainless steel and in 12/24 V versions.
Always choose seals to suit the liquid being pumped. The pump is not intended for petrol or solvents.
Buy the Tellarini ENM 25
We have the Tellarini ENM 25 (art. 501) in stock and ship worldwide, including direct to vessels. Email us at info@arnenielsen.dk for price and shipping.
